Welcome to the installation guide for the RF Transparent frameless glass railing system. Installing a frameless glass railing is all about getting a clean, modern look while keeping things safe. To start, you will need to carefully measure and mark where each glass panel will go, making sure everything's lined up straight and level. This guide provides step by step instructions and useful tips to ensure a successful installation.
Installation Guide:
An installation guide for glass railings provides step by step instructions on how to correctly and safely install a glass railing system. Here are the details for installing frameless glass railing.
Choose the right system:
To securely install glass into a long metal channel, various hardware methods are used. One approach involves clamps that hold the glass upright at regular intervals. Another method utilizes round metal discs that bolt through the glass, anchoring it directly to a wall or slab edge for extra support and a clean look.
Prepare setting blocks:
Make the setting blocks as clean as possible and ensure that there are no distractions or dirt in them. Make sure that installations have such parameters as height, shape and density correct, In this regard glass panels should be correctly lifted.
Measure and mark layout:
Mark where the glass panels will be placed. Ensure there is equal spacing and alignment. Double check stair angles or slopes if installing on steps.
Prepare the surface:
Clean and level the installation area and drill holes if needed for anchors or bolts.
Install the mounting hardware:
Installing mounting hardware involves attaching the necessary brackets, screws and other components to a rack or surface to securely hold a device or object. This process typically includes steps like aligning brackets, inserting screws and tightening them to the rack or surface, ensuring the device is properly supported.

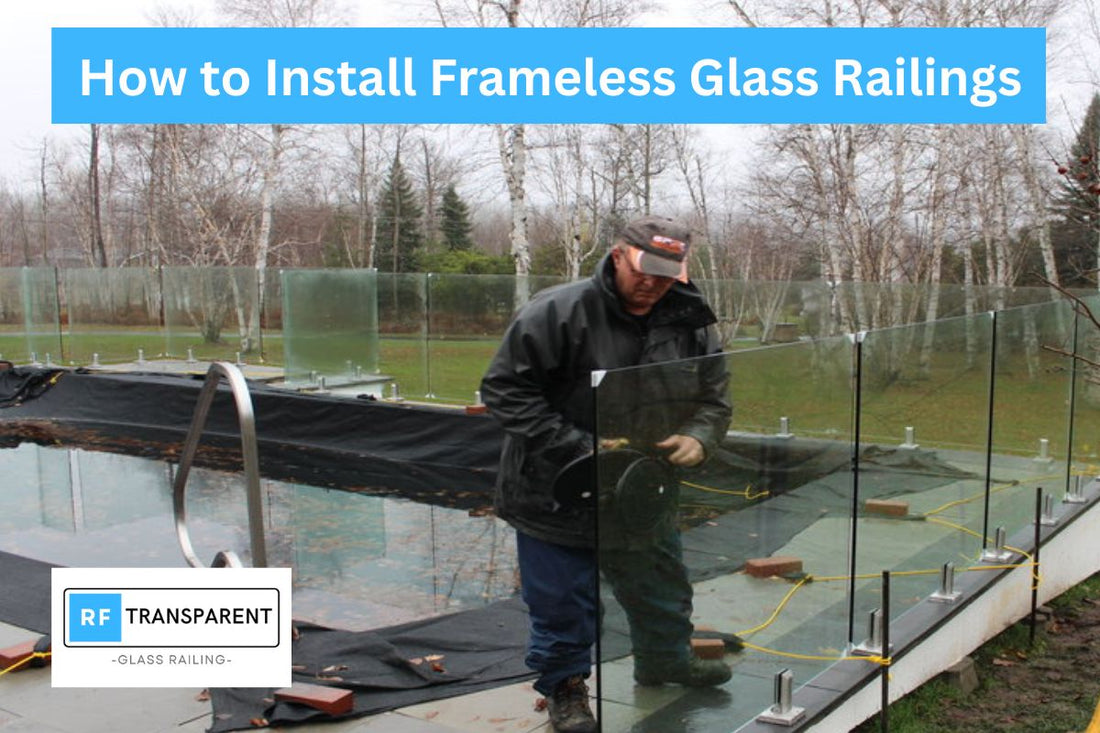

Place the glass panels:
Carefully lower the glass into the mounting system. Use suction cups and a rubber mallet to make fine adjustments. Make sure each panel is level and aligned.
Secure the glass:
Insert rubber gaskets, wedges or clamps depending on the system. Use torque tools or lock screws if needed. Apply silicone sealant if specified by the manufacturer for waterproofing.
Clean and inspect:
Wipe down the glass and hardware. Check all fastenings are tight and panels are secure. Step back and inspect alignment and spacing.
What tools and materials are needed to install a frameless glass railing?
To install a frameless glass railing, you will need tools like a level, tape measure, drill, rubber mallet and glass suction cups. You will also require materials such as stainless steel brackets or spigots and the glass panels themselves, pre-cut to size. Here a more detailed breakdown:
Tools:
Drill: Creates holes for mounting brackets and securing railing area for precise placement.
Level: Ensures the railing is installed evenly and horizontally.
Tape measure: Accurately Measures the installation area for precise placement.
Screwdrivers: Tightness screws to secure railing components.
Rubber mallet: Gently taps spigots or clamps into place without damaging the glass.
Glass suction cups: Handles heavy and delicate glass panels safely.
Pencil: For layout marking.
Materials needed:
Glass panels: Pre-cut to the required dimensions.
Clamps: Additional securing hardware for some frameless systems.
Handrail: A handrail may be needed depending on the type of glass and local regulations.
Stainless steel brackets or spigots: Used to secure the glass panels to the mounting surface.
Rubber Gaskets and shims: To cushion and align the glass in the base shoe or clamps.
Top Rail: For extra stability and to meet certain code requirements.
End caps and covers: For a clean, finished look on railings and base shoes.
What are the common types of frameless glass railing systems?
Frameless glass railing systems come in several types, each offering a unique aesthetic and support mechanism. Common types include standoffs, short post systems, Spigot systems, base shoe systems and baluster systems, with the glass panels held by minimal hardware. Here’s a more detailed look at each:
Short post systems:
These systems offer a low profile design with shorter posts, providing a more unobstructed view and easier maintenance.
Spigot systems:
Spigot systems feature a quick and easy installation process, using spigots to hold the glass panels in place, resulting in a clean, modern aesthetic.
Standoff systems:
These systems provide a sleek, minimalist look by using standoffs to hold the glass panels in place, making them appear to float.
Base shoe systems:
These systems utilize a base shoe to support the glass panels, providing robust support and a more prominent visual presence.
Baluster systems:
While not strictly frameless, baluster systems combine the traditional look of balusters with glass panels, offering a blend of classic appeal and strong structural integrity.
U-channel systems:
These systems use a U-shaped channel to support the glass panels, providing a strong and secure foundation.
Cable Railing systems:
Instead of glass panels, these systems use tensioned stainless steel cables to create a secure yet visually open railing system.
Wet glaze and dry glaze systems:
For a wet glaze uses epoxy and cement grout to hold the glass that provides more rigidity but is harder to remove. For a dry glaze, use mechanical baskets and pressure plates that are easier and cleaner to install and replace glass.
How do I prepare the area before installation?
To properly prepare an area for installation, start by assessing the site conditions, including physical aspects like space, layout, and utilities. Then, clean and clear the area, removing obstacles and debris to create a safe and accessible workspace. Here’s a more detailed breakdown:
Site assessment:
Utility access: Check for adequate power, water and drainage, ensuring they are within reach and accessible.
Physical conditions: The space, layout and accessibility of the area. Consider factors like height, width and any potential obstructions.
Environmental factors: Environmental conditions such as electrical wires or uneven surfaces.
Cleaning and clearing:
Remove obstacles: Remove all the obstacles, like furniture, appliances or debris.
Protect belongings: Cover or move any valuable items that might be damaged during the installation.
Clean the surface: Clean the surface area, like clean the floor and walls, removing any dust, dirt and grease.
How do I secure the glass panels without frames?
Securing glass panels without frames can be achieved using adhesives, rubber stoppers or specialized window security films and locks. For a permanent solution, consider using clear silicone adhesive, applying it sparingly to avoid residue. For less permanent options, rubber stoppers can be inserted to hold the panel in place within a groove. Additionally, window security film can be applied to the glass to prevent shattering and locks can be installed to deter forced entry. Here are the detailed securement methods:
Rubber stopper:
Simply nestle the glass panel in the groove of the opening and insert rubber stoppers to hold it in place.
Adhesives:
Apply a high quality adhesive like silicone or epoxy along the edges of the glass panel and carefully place it into position, using shims or spacers for adjustment.
Glass connectors:
These are used to join multiple glass panels, making them ideal for projects requiring a clean, uninterrupted glass surface.
Window security film:
This film can be applied to the glass to reinforce it and prevent breakage during break ins.
Window bars:
For added security, especially in areas prone to theft, consider installing bars that prevent unauthorized entry.
